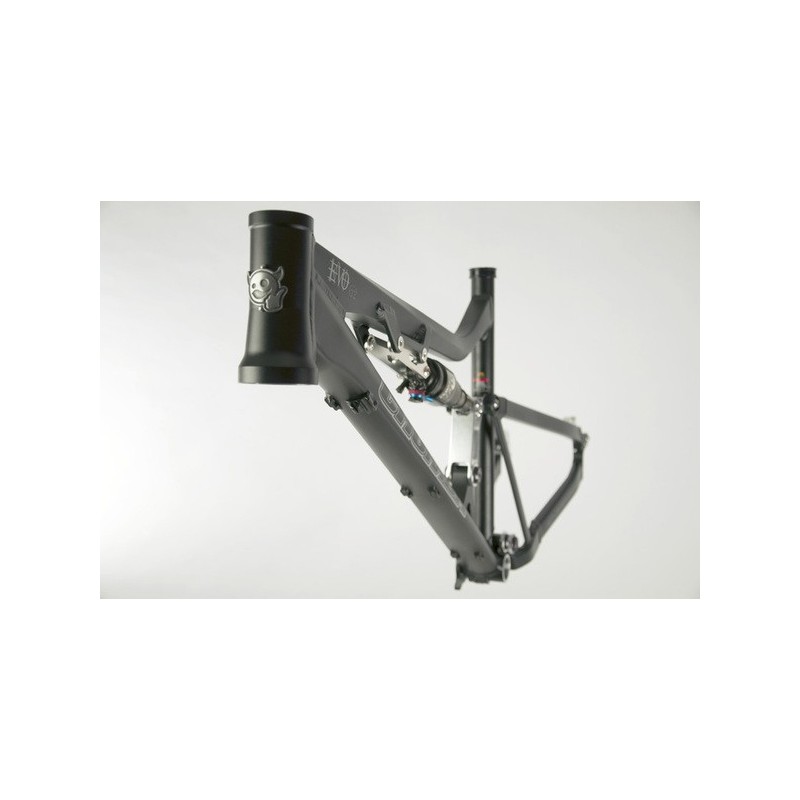

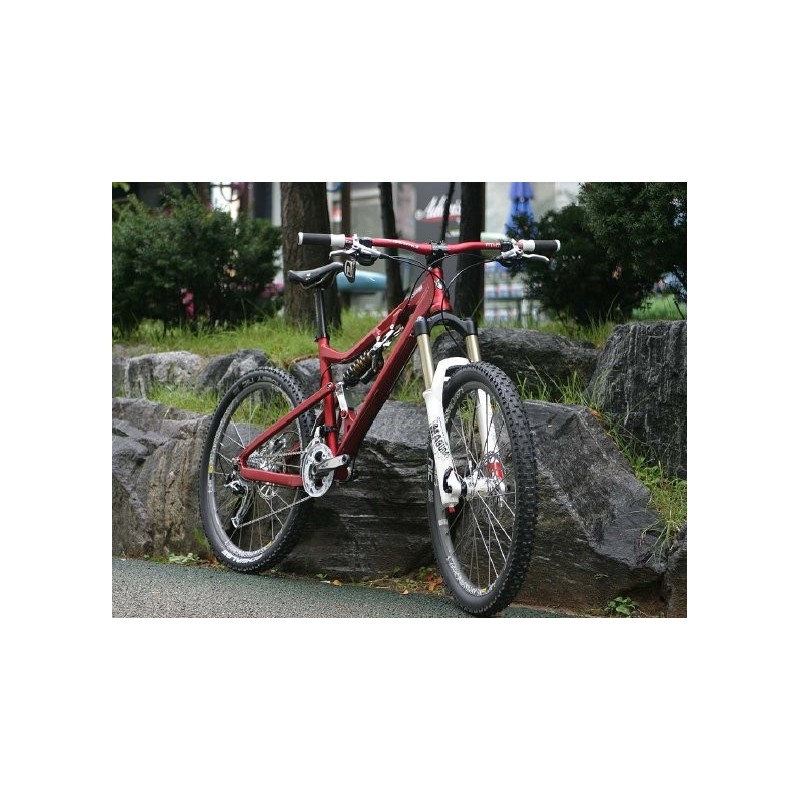

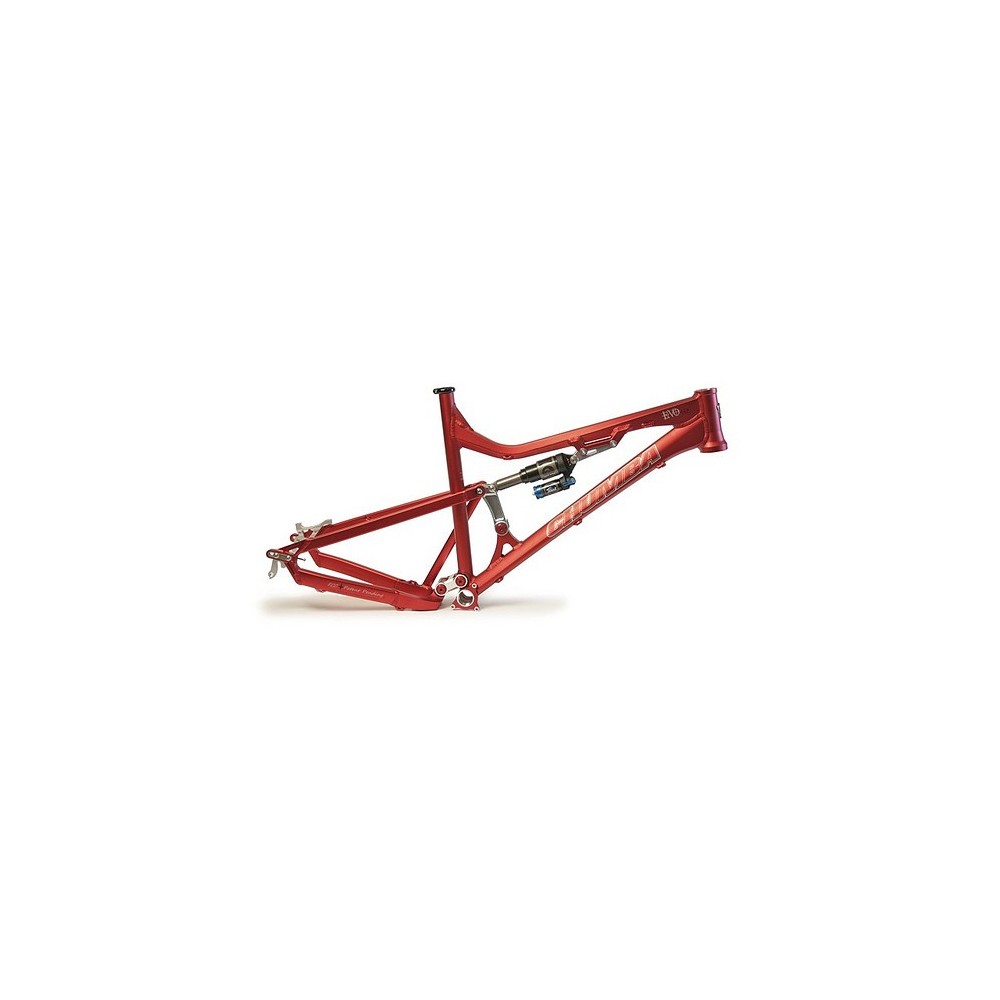

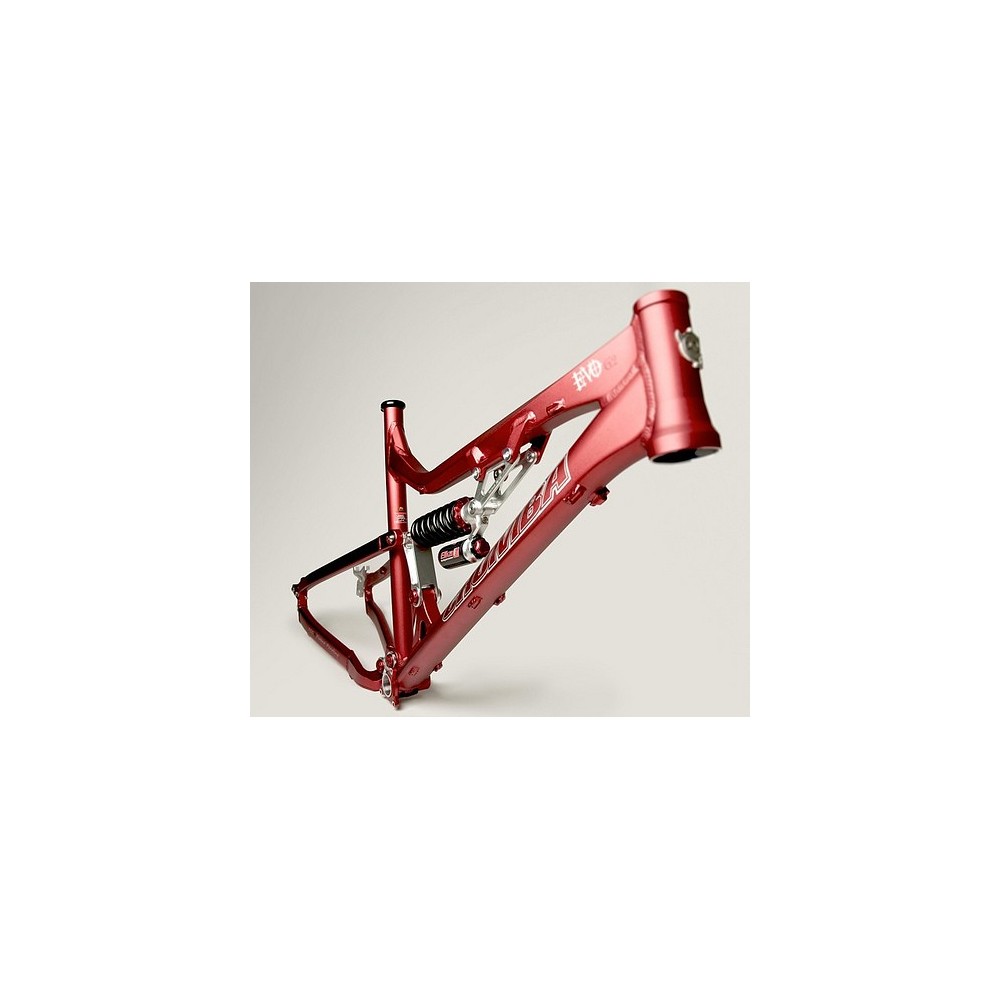

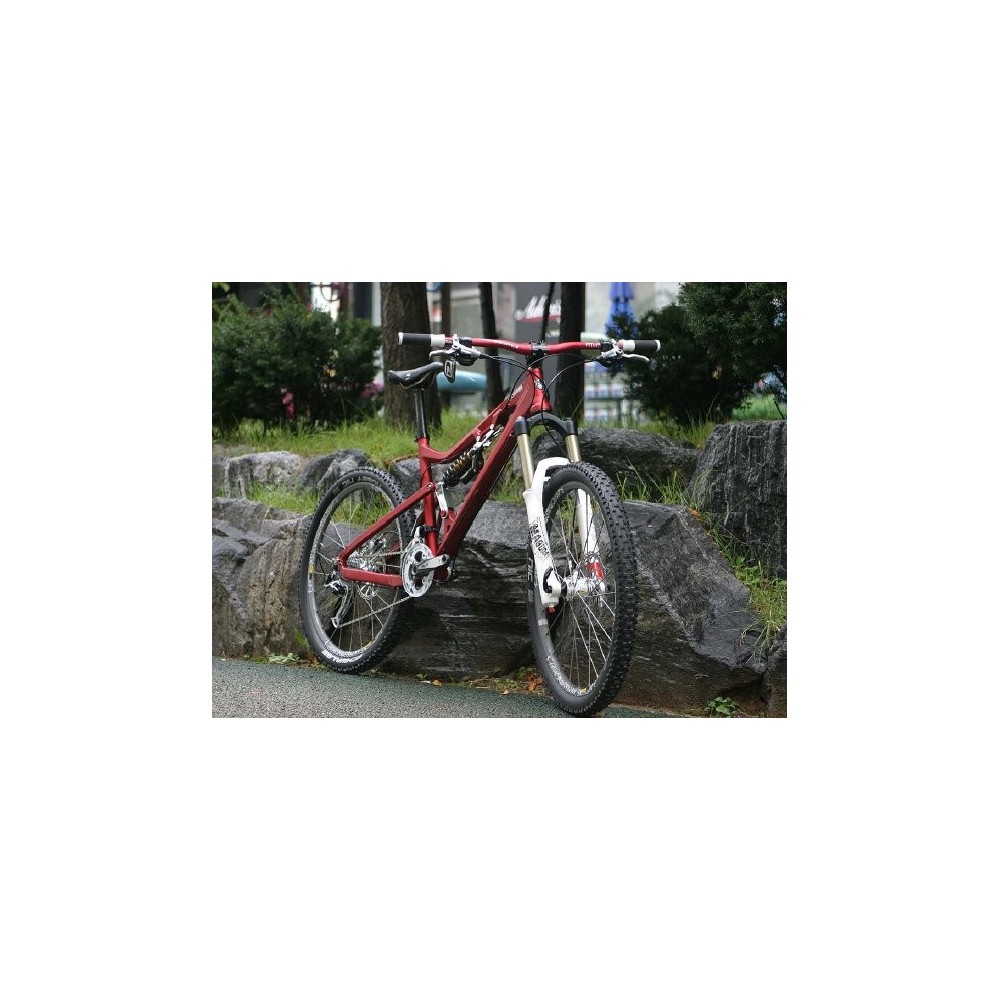

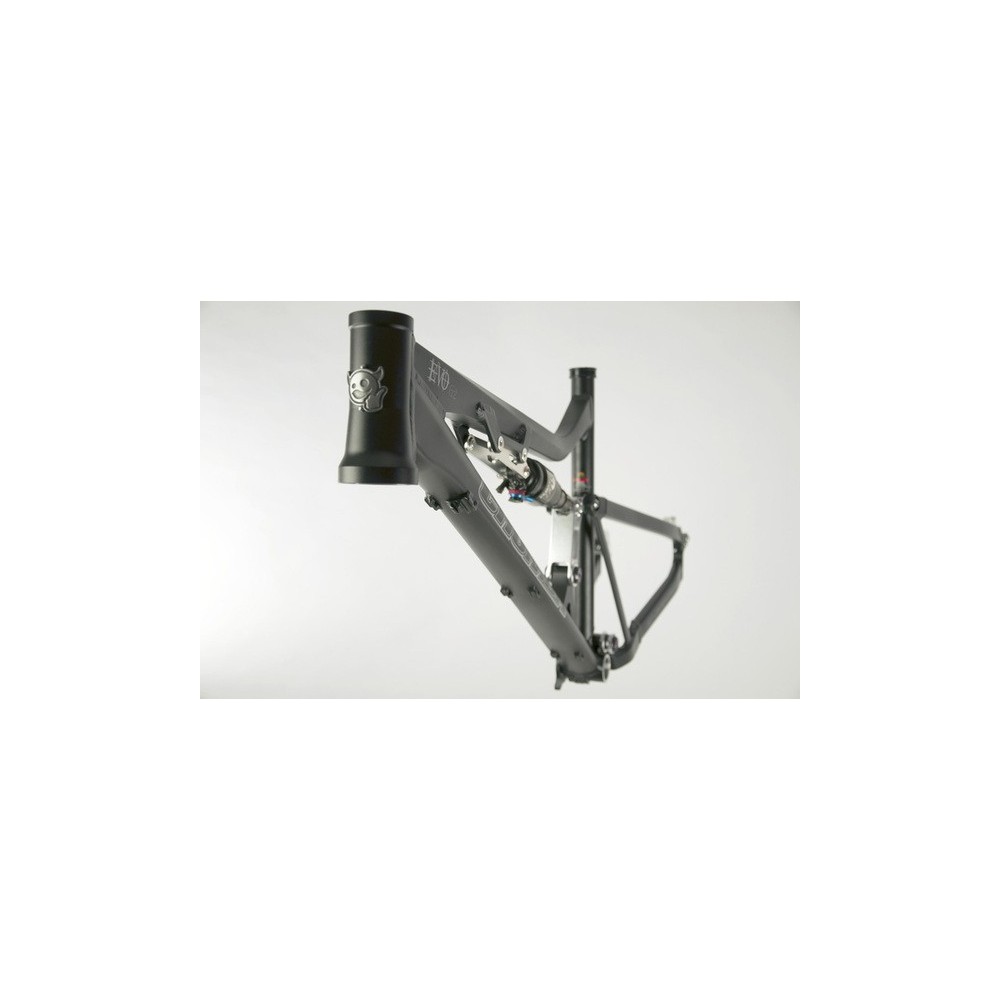

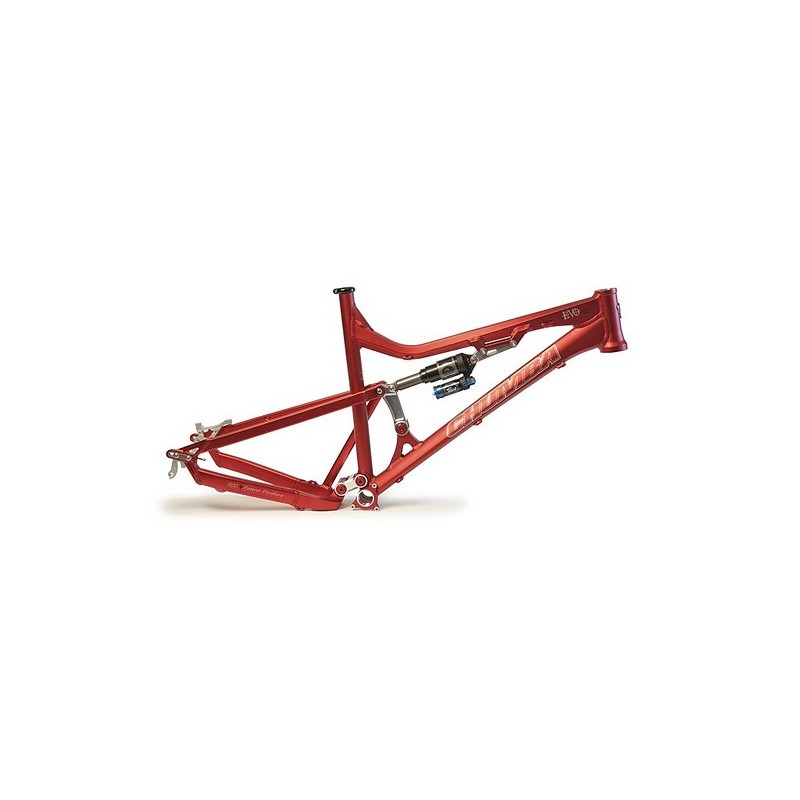

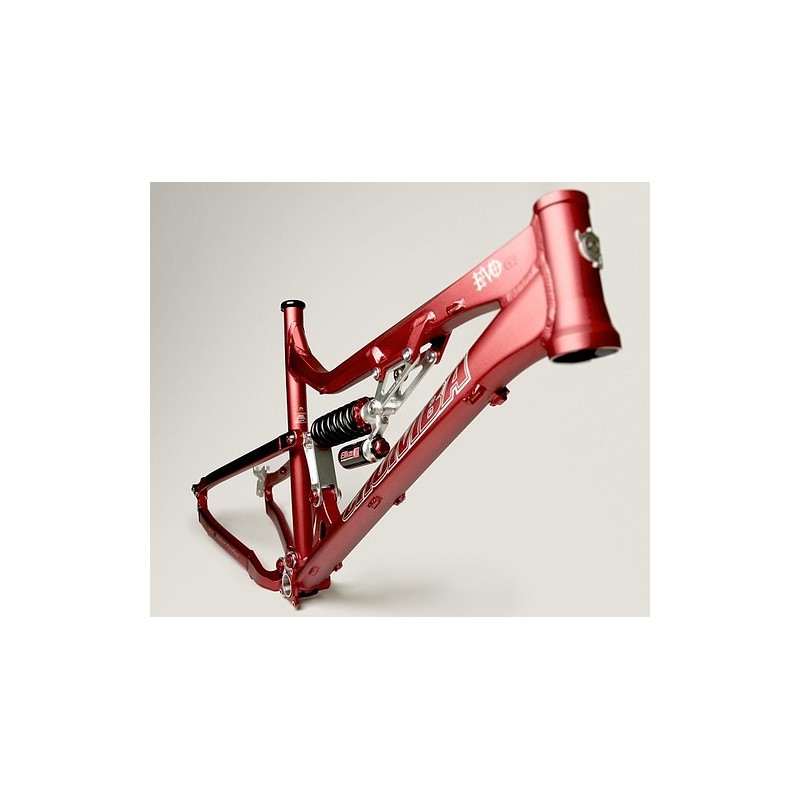

Idèen bak Chumba EVO G2 var å lage en langbeint stisykkel med 150-160 mm vandring med det beste av den nyeste teknologien. Sykkelrammen er lett, men sterk nok til å være en allsidig stisykkel til en svært konkurransedyktig pris.

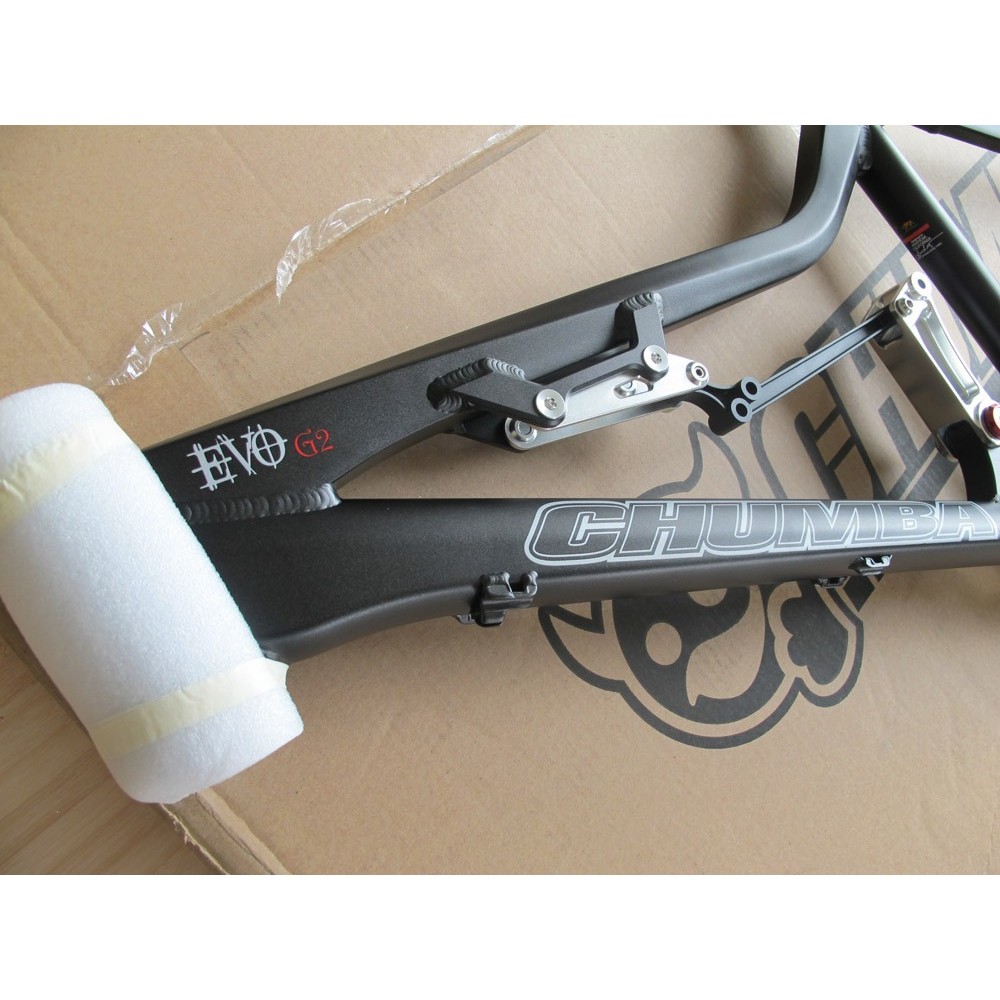

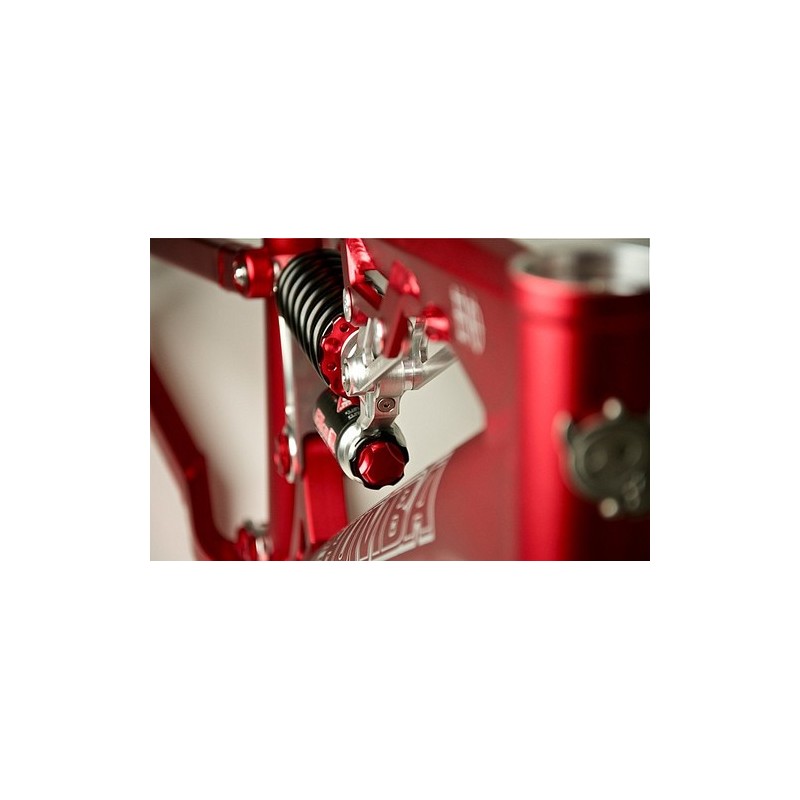

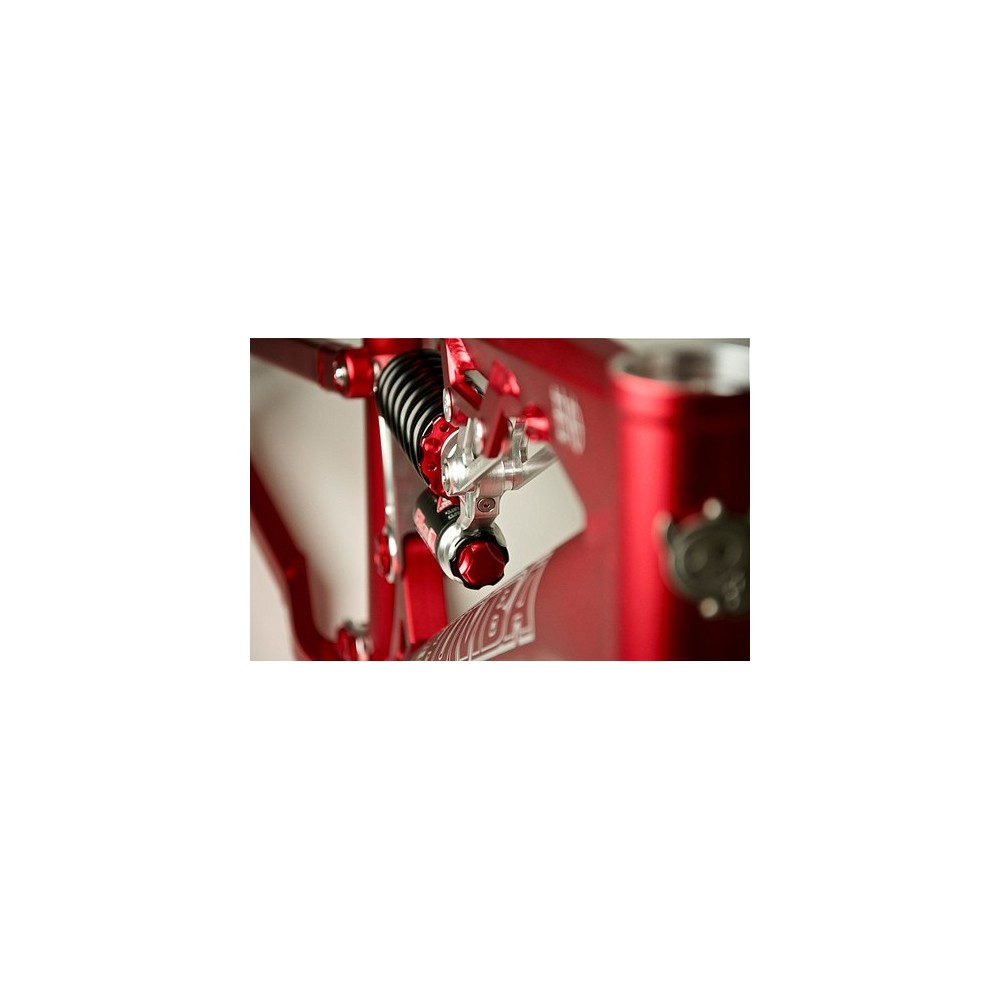

• New FCC Suspension – using downtube dual-link design for centrally balanced chassis and leverage rates for specific, replaceable shock mounts unique to a coil setting and an air setting.

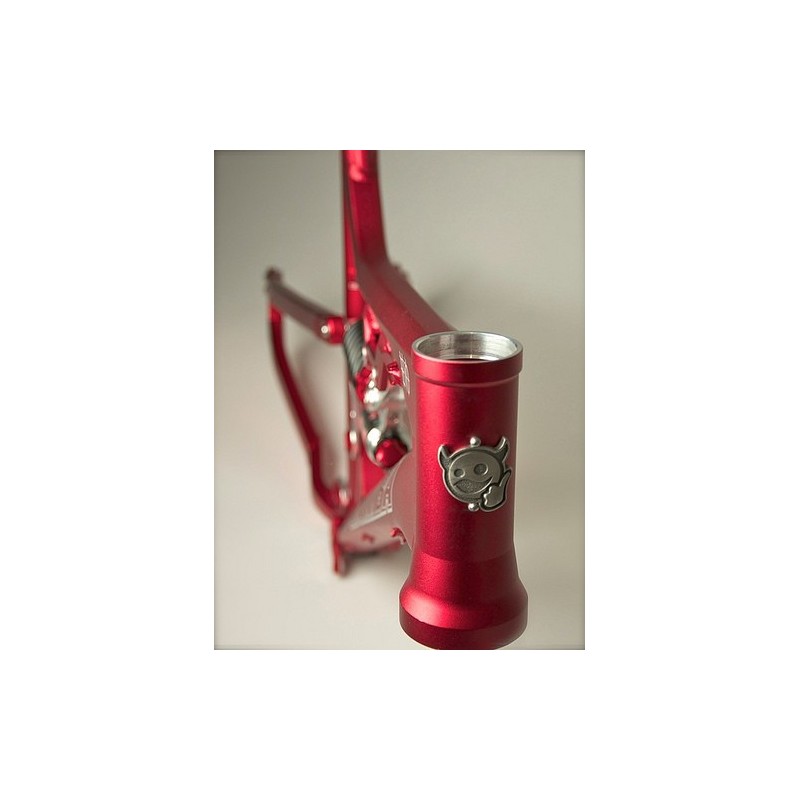

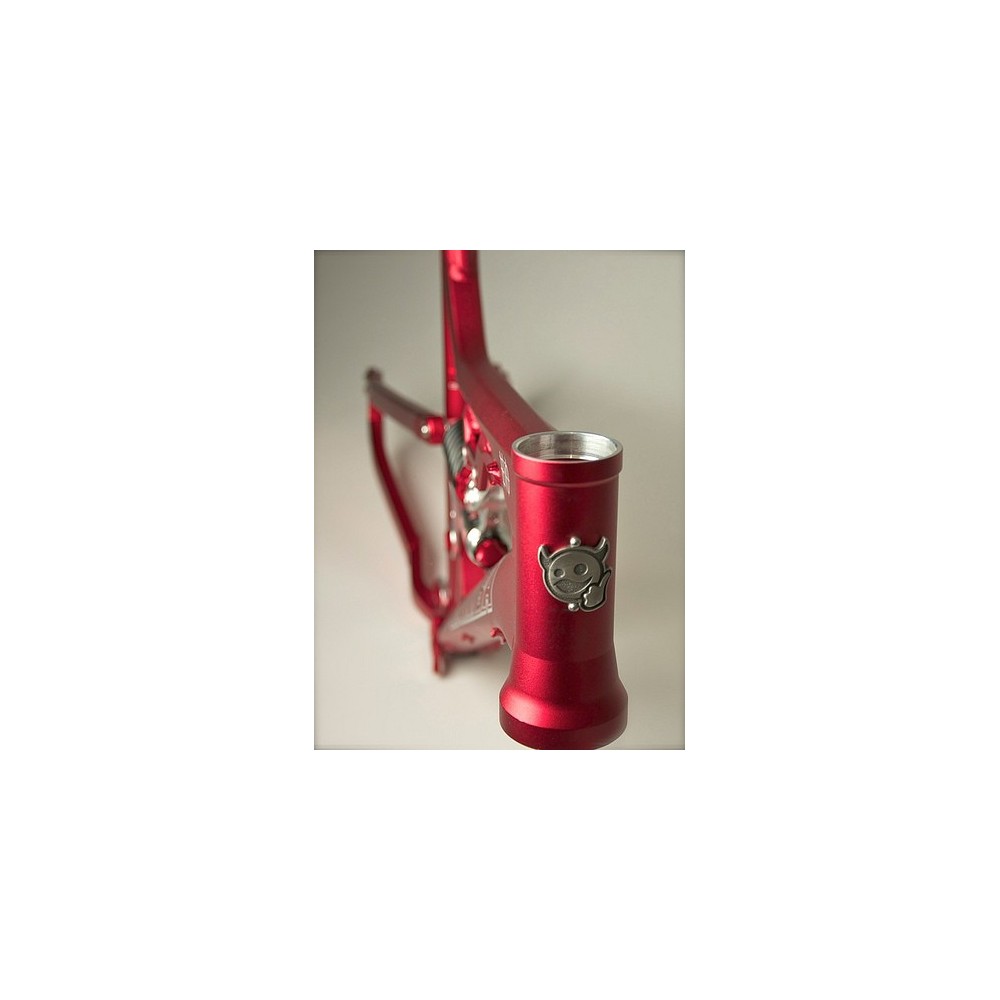

• New Tapered headtube Zerostack from 1 1/8” to 1.5”, compatible with angle adjust headsets.
• ISCG05 Mounts, compatible with Hammerschmidt and most chainguides.
• Ramme størrelser: XS (13”), Small (15”), Medium (17”), Large (19”)
• Farger: Alpine White, Anodized Jet Black, Anodized XTR Gray, Anodized Bloody Red, Anodized Blue.

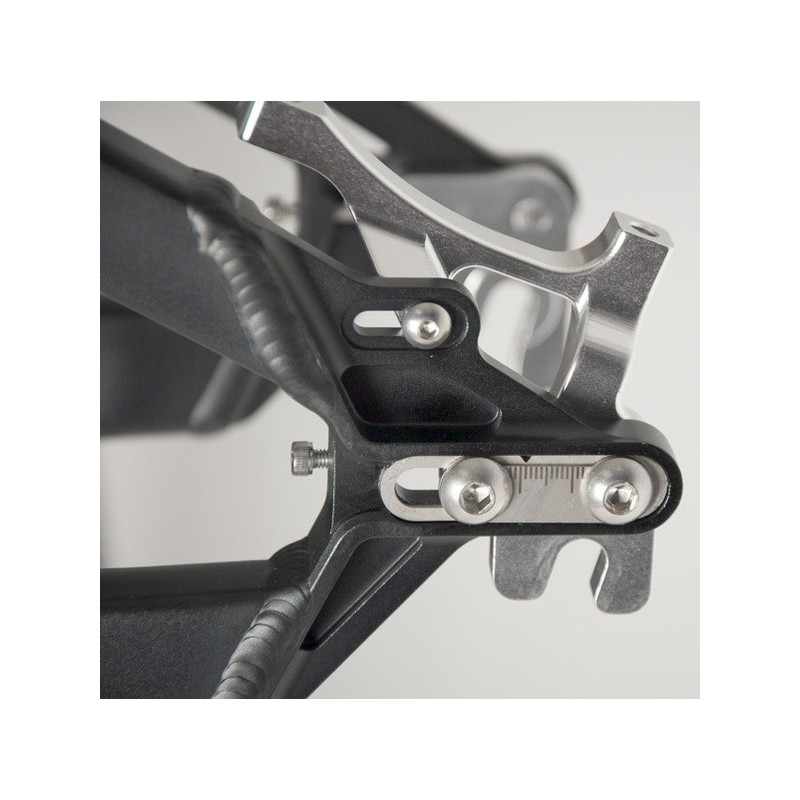

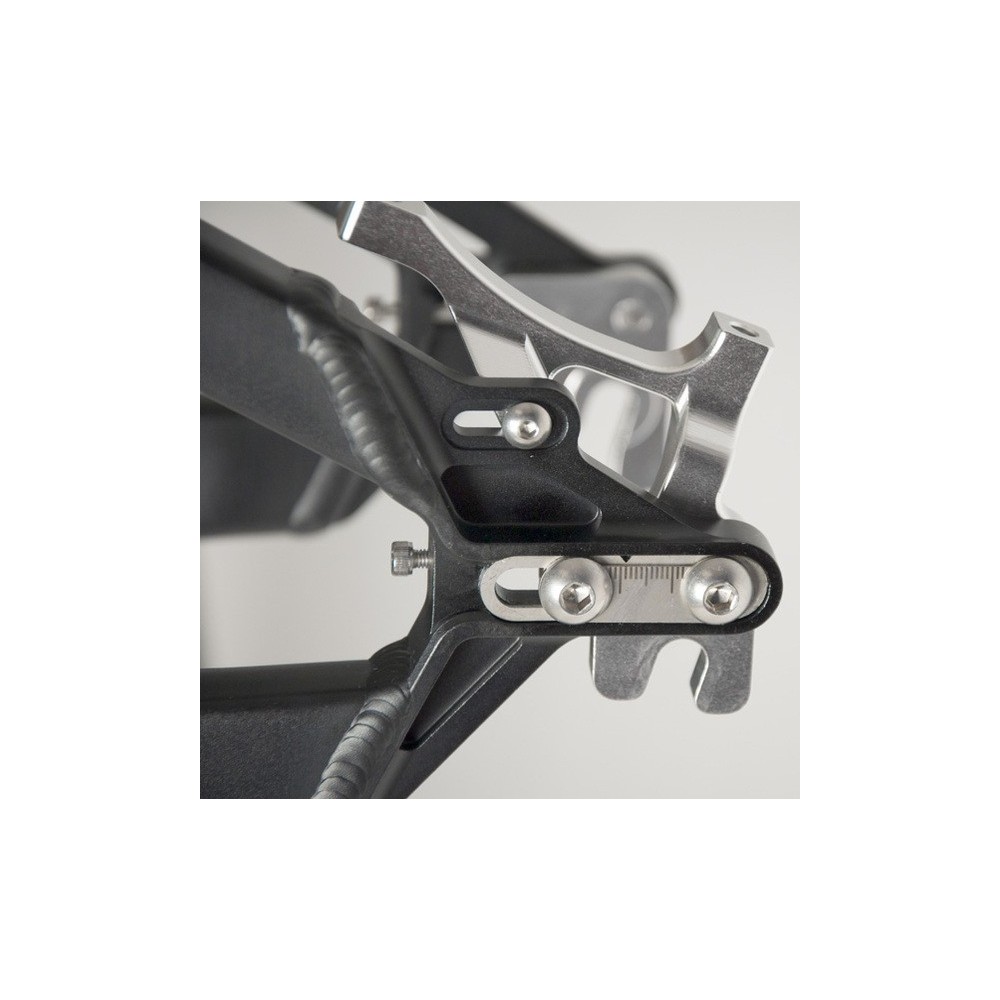

• ARD – adjustable, replaceable, dropouts for adjusting wheelbase, chainstay length, and different axle types to come.
• Custom, hydroformed tubeset for maximum strength with weight savings.
• Travel: 5.9”
• Oversized main cartridge bearing pivots and lower link pivots
• High-end frame anodized bead-blasted finish with immaculate welding and frame alignment
Ta kontakt for tilbud på komponenter eller komplett sykkel.
Geometry measured using 150mm fork
| Frame Size | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Seat Tube | 330 | 381 | 431 | 483 |
| Effective Top Tube | 550 | 569 | 590 | 615 |
| Standover | 711 | 724 | 737 | 767 |
| BB Height | 340 | 340 | 343 | 343 |
| Head Tube Angle | 68 | 68 | 68 | 68 |
| Seat Tube Angle | 72.5 | 72.5 | 72.5 | 72.5 |
| Chainstay | 433 | 433 | 433 | 433 |
| Wheelbase | 1259.5 | 1280.7 | 1301.9 | 1327.8 |
Geometry measured using 160mm fork
| Frame Size | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Seat Tube | 330 | 381 | 431 | 483 |
| Effective Top Tube | 551 | 571 | 591 | 617 |
| Standover | 718 | 731 | 744 | 767 |
| BB Height | 348 | 348 | 350 | 348 |
| Head Tube Angle | 67 | 67 | 67 | 67 |
| Seat Tube Angle | 71.5 | 71.5 | 71.5 | 71.5 |
| Chainstay | 432 | 432 | 432 | 432 |
| Wheelbase | 1267.11 | 1288.31 | 1309.51 | 1335.41 |
Idèen bak Chumba EVO G2 var å lage en langbeint stisykkel med 150-160 mm vandring med det beste av den nyeste teknologien. Sykkelrammen er lett, men sterk nok til å være en allsidig stisykkel til en svært konkurransedyktig pris.
